From the manufacturer

Features

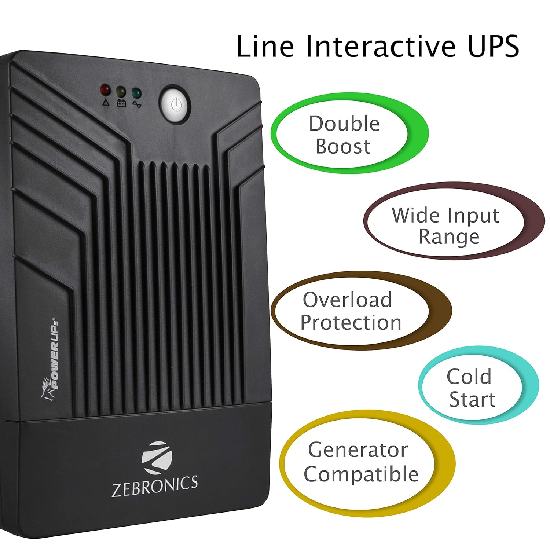

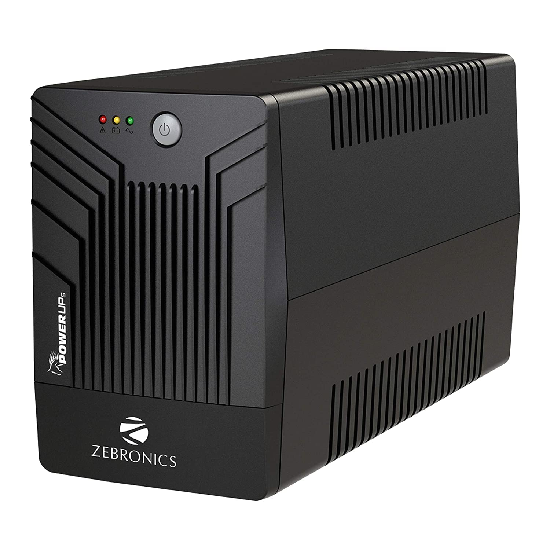

• Line interactive UPS
• Auto restart while AC is recovering
• Double Boost
• Automatic Voltage Regulation (AVR)
• Wide Input Range
• Microcontroller Based
• Generator Compatible

Specification

Output

• Voltage Range (AC mode): 230VAC ± 10 %
• Voltage Range (Batt. Mode): 230VAC ± 10 %
• Frequency Range (Batt. Mode): 50Hz/60Hz ±1%
• Transfer Time: Typical 4-8ms
• Waveform: Simulated Sine Wave
• Protections: Overload, Short Circuit, Over Discharge & Over Charge

Battery

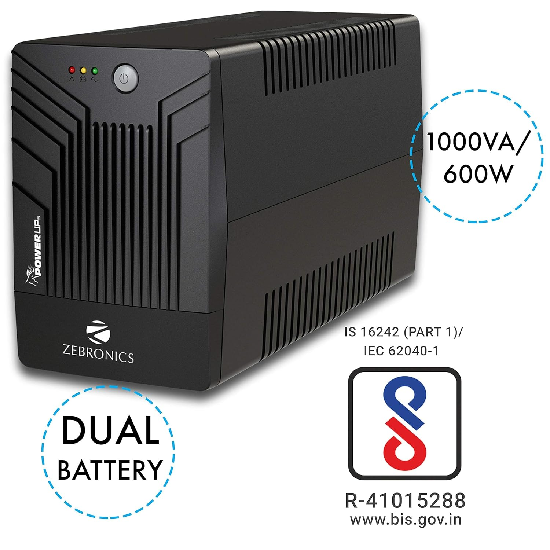

• Battery Type: 12V 7Ah x 2 no
• Recharge Time: 4-6 hours to charge 90%

Indicators

• AC Mode: Green LED Glows
• Battery Mode: Orange LED Blinks
• Fault: Red LED Glows
• Battery Mode: Beeping every 10 Seconds
• Low Battery: Beeping every seconds
• Overload: Beeping every 0.5 seconds
• Fault: Continuous Beeping

Overload protection

U1200 is a line interactive UPS that comes with overload protection that helps in saving your connected device from damage cost by overloading.

Sleep Mode charging /LED & Audible Alarm

The UPS supports sleep mode charging and it also comes with LED indicator and audible alarm that alerts the user incase of a fault.

Automatic Voltage Regulation

The UPS regulates the output voltage according to the given input voltage in order to provide us constant output waveform.
