Performance and Features

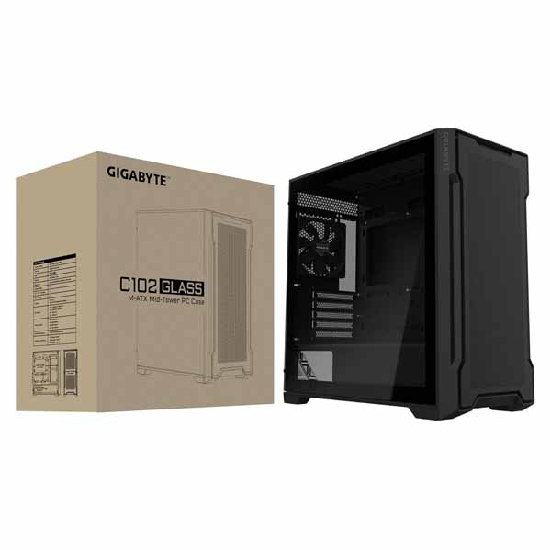

Gigabyte Cabinet C102 Glass Tower Case Black
- Optimized Airflow Design
- Full-Size Tempered Glass Side Panel
- With USB 3.0 x2 on I/O panel
- Up to 360mm Liquid Cooling Compatible
- Detachable Dust Filter
Feature
- Gigabyte Case Form Factor: Mid Tower, with motherboard support ranging from Mini-ITX to m-ATX
- Radiator Support: Front: Max 360mm, Top: Max 360mm, Side: Max 240mm, Rear: Max 120mm
- Pre-Installed Fans: Front: 120mm x1, Rear: 120mm x1
- Fan Support: Front: 120mm x3 / 140mm x3, Top: 120mm x3 / 140mm x2, Side: 120mm x2, Rear: 120mm x1
- Front I/O: USB 3.0 x 2, Reset Button, Audio Ports
- Dimensions: 282 (W) x 525 (D) x 517 (H) mm / 11.1 (W) x 20.6 (D) x 20.4 (H) inch
OPTIMIZED AIRFLOW DESIGN
The front, top and partial right-side panels are vented design, delivering generous airflow for optimized cooling with premium aesthetics.
TEMPERED GLASS SIDE PANEL
Built with 4mm black tempered glass on the side panel, which adds a filter to the internal RGB lighting device, making your PC parts a stunning showpiece. The non-drilled glass design effectively reduces the risk of fragmentation, allowing users to remove it with ease and safety, also extending the product lifespan.

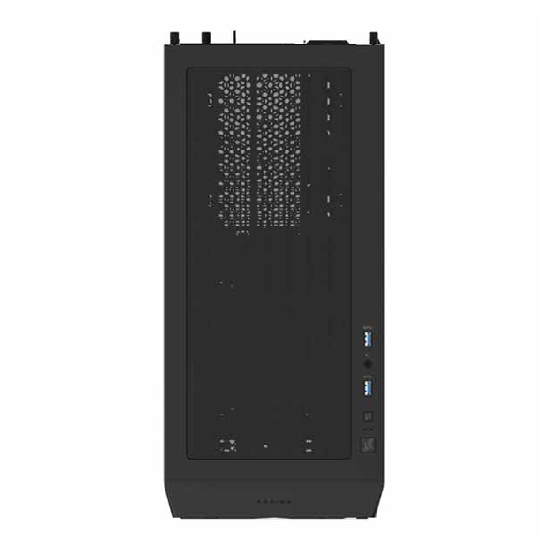

I/O PANEL
Equipped with two USB 3.0 ports, audio ports, a reset button and a power button.
COMPATIBILITY
Dimensions
Fan system
Radiator system
Drive support
DETACHABLE MAGNETIC FRONT PANEL
The front panel features a magnetic design, enabling gamers to effortlessly remove it for device replacement and routine cleaning.
PSU SHROUD DESIGN
Enjoy a clean look by hiding the PSU and those messy power cables inside the PSU shroud, while separating the PSU heat from the rest of the internal system. With the window design on the left side of the shroud, users can show off the cool outlook of PSU.
DETACHABLE DUST FILTER
The filters keep your PC from accumulating dust, while maintaining optimal cooling performance. The magnetic filter of top and right-side panels, along with the removable filter at the bottom, make maintenance easy.
Model Name | GIGABYTE C102 GLASS |
Model Number | GB-C102G |
Case Form Factor | Mid Tower |
M/B Type | Mini ITX / Micro ATX |
Color | Black |
Materials | Steel, Plastic, Glass |
Dimensions | H450x W210x D450 mm (Within ± 1% error) |
Expansion slots | 5 |
5.25" Drive Bays | None |
3.5" Drive Support | 2 |
2.5" Drive Support | 2 + 1 (Replace from 3.5") |
I/O Panel | USB 3.0 x2 Reset Button Audio In & Out (supports HD Audio) |
Pre-installed Fan | Front : 120mm x1 Rear : 120mm x1 |
Fan Support | Front : 120mm x3 / 140mm x2 Top : 120mm x3 / 140mm x2 Side : 120mm x2 Rear : 120mm x1 |
Radiator Support | Front : Max 360mm Top : Max 360mm Side : Max 240mm Rear : Max 120mm |
Power Supply Type | Standard ATX (Not included) |
Maximum Compatibility | CPU Height : 165mm GPU Length : 410mm PSU Length : 200mm |
Dust Filters | Top, Bottom, Side |
Weight | N.W. 5.79 Kg G.W. 6.97 Kg |
Package Dimensions | H=517 W=282 D=525 mm |
Accessories | 1.Manual 2.Accessories kit |
Warranty | 1 Year |
