Performance and Features

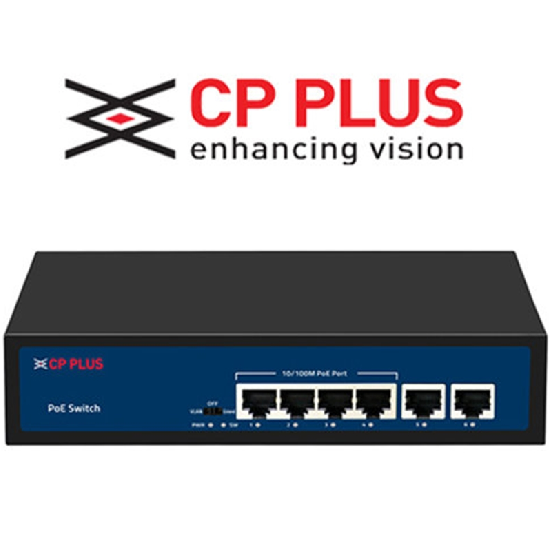

CP Plus 4 Port PoE Switch (CP-DNW-HPU4H2-48)
Rs 1399.00 ₨
1999.00
30% off
Availability: instock
CP-DNW-HPU4H2-48-V2
6 Ports Switch with 4 PoE Ports & 2 Uplink Ports
- 4, 100Mbps; RJ45 ports, Supports Max. 30W Output of Single PoE Port
- Support IEEE802.3/802.3u/802.3x
- 2, 100Mbps, Transmission Distance: 0-100m
- Easy and safe installation
Specification
| Network Port | 4, 10/100Mbps; RJ45 port; Max. 30W Output of Single PoE Port |
| Uplink Ports | 2, 10/100Mbps; Transmission Distance: Default: 0-100m |
| Switch Capacity | 1.2Gbps (non-blocking) |
| Forwarding Rates | 0.1488 Mbps/port |
| PoE Standard | IEEE802.3/802.3u/802.3x |
| PoE Power Supply | 1/2(+),3/6(-) |
| Transmission Distance | 0-100m/100Mbps or Max. 250m/10Mbps via Cat.5e or more under Extend mode |
| MAC Address List | 2k |
| Lightning Protection | Support |
| PoE Power Budget | 48W |
| ESD Protection | Air discharge: 8KV Contact discharge: 6KV |
| Power Consumption | <5W |
| LED light | Green light off: Link is disconnected Green light on: Link is connected Green light flash: Data Transmitting |
| Power Source | Built-in Power Supply, Input: 100-240V AC, 50/60Hz |
| Power Light | Light on: Powering Light off: No Power |
| Working Temp | -10°C ~50°C |
| Humidity | 5%-95% , non-condensing |
| Storage Temperature | -40°C ~70°C |
| Dimension | 200mm x 118mm x 44mm (LxWxH) |
| Additional features | |
|---|---|
| Value 1 | 21 cm |
| Value 2 | 700 gr. |
| Value 3 | 10 person |
| Value 4 | 14 cm |
| Value 5 | plastic |
