Performance and Features

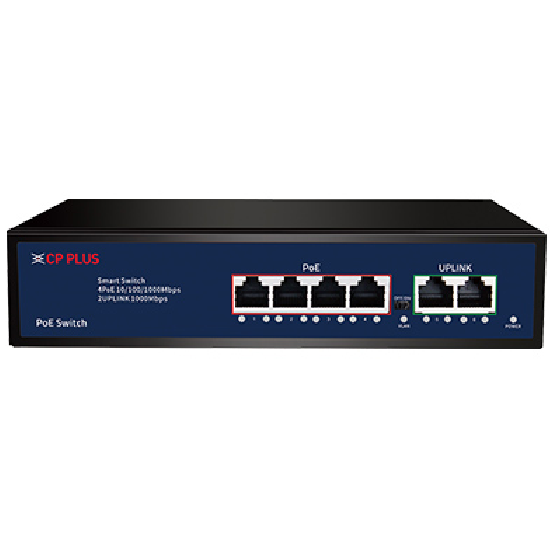

CP-6 Ports Switch with 4 Gigabit PoE Ports & 2 Gigabit Uplink Ports
Rs 2699.00 ₨
3300.00
18% off
Availability: instock
- 4, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port
- Support IEEE802.3i/802.3u/802.3x/802.3ab
- Uplink Port: 2, 1000Mbps; Transmission Distance: 0-100m
- PoE Power Budget: 48W
| Switch Capacity | 12 Gbps Full duplex |
| Uplink Ports | 2, 1000Mbps; Transmission Distance: 0-100m |
| PoE Power Budget | 48W |
| Anti-thunder Level | Common mode: 2KV Differential mode: 2KV |
| ESD | Air discharge: 1.5KV Contact discharge: 1.5KV |
| Ethernet Port Light | Light off: Link is disconnected Red light on: Powering but data disconnected Light flash quickly: Data Transmitting |
| Network Port | 6 |
| Transmission Distance | 0-100m/100 Mbps |
| PoE Ports | 4, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port Transmission distance:0~100m |
| PoE Power Supply | 1/2(+), 3/6(-) |
| PoE Standard | IEEE802.3af, IEEE802.3at |
| Packet Forwarding Rate | 1.488Mpps/port |
| MAC Address List | 2K |
| Power Source | Built-in Power Supply, Input: 100-240V AC, 50/60Hz |
| Power Consumption | <5W |
| Operating Temperature | -10°C~ -50°C |
| Humidity | 10%-95% , non-condensing |
| Storage Temperature | -40°C~70°C |
| Dimension | 202mm x 140mm x 45mm (L x W x H) |
| Additional features | |
|---|---|
| Value 1 | 21 cm |
| Value 2 | 700 gr. |
| Value 3 | 10 person |
| Value 4 | 14 cm |
| Value 5 | plastic |
