Performance and Features

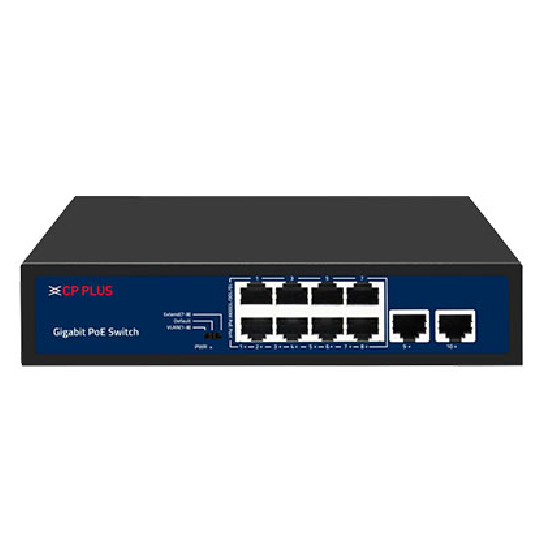

CP-10 Ports Switch with 8 Gigabit PoE Ports & 2 Gigabit Uplink Ports
Rs 4110.00 ₨
5500.00
25% off
Availability: instock
- 8, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port
- Support IEEE802.3i/802.3u/802.3x/802.3af/802.3ab
- 2, 1000Mbps; Transmission Distance: 0-100m
| Uplink Ports | 2, 1000Mbps; Transmission Distance: 0-100m |
| Network Protocol | IEEE802.3i/802.3u/802.3x/802.3af/802.3ab |
| Switch Capacity | 20Gbps Full duplex |
| Packet Forwarding Rate | 1.488Mpps/port |
| PWR (Power Indicator) | Light on: Powering, Light off: No Power |
| PoE Ports | 8, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port |
| Network Port | 10 |
| MAC Address Table | 2K |
| PoE Standard | IEEE802.3af, IEEE802.3at |
| PoE Power Supply | 1/2(+), 3/6(-) |
| Transmission Distance | 0-100m/1000Mbps or Port 7-8 Max. 250m/10Mbps via Cat.5e or more under Extend mode |
| PoE Power Budget | 96W |
| PoE Feature | All ports support MDI/MDIX |
| ESD | Air discharge: 8KV ; Contact discharge: 6KV |
| Surge Protection | Common mode/RJ45 port: 4KV Differential mode/RJ45 port: 2KV Common mode/Power board: 2KV Differential mode/Power board: 2KV |
| VLANs | Support |
| RJ-45 ACT Indicator | Green light off: Link is disconnected Green light on: Link is connected Green light flash: Data Transmitting |
| Watchdog | Support |
| Forwarding Mode | Store-and-forward |
| Power Source | Built-in Power Supply, Input: 100-240V AC, 50/60Hz |
| Power Consumption | <5W |
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -40°C ~ 70°C |
| Working Humidity | 10%-95% , non-condensing |
| Dimensions | 200mm x 118mm x 44mm |
| Color | Black |
| Weight | 0.8Kg (not include input cable & packaging) |
| Additional features | |
|---|---|
| Value 1 | 21 cm |
| Value 2 | 700 gr. |
| Value 3 | 10 person |
| Value 4 | 14 cm |
| Value 5 | plastic |
